Hipro belts for Industrial Applications

Esbelt Hipro belts double life span compared to other PVC belts.

Double resistance to abrasion and mineral oils.

Belt features:

  • HPVC on cover side (special high performance PVC).

  • High resistance to abrasion.

  • Resistant to chemical products, diesel, mineral oils, acids and alkaline solutions (except ketone and chlorinated solutions).

  • Bottom cover conductive resin fabric, resistant to abrasion and external environmental factors..

  • Antistatic according to ISO 284 standards.

  • Vulcanised splice or fastener joints..

Esbelt´s Hipro series belts are designed for applications where there is high wear caused by friction between the belt and product due to high usage or speed of the conveyor.

The ability to vulcanise the belt ends makes Hipro belts a more efficient choice than elastomer belts as less time is required to join the belts compared to elastomer or rubber belts which require more time to cure the belt joints.

Examples of application:

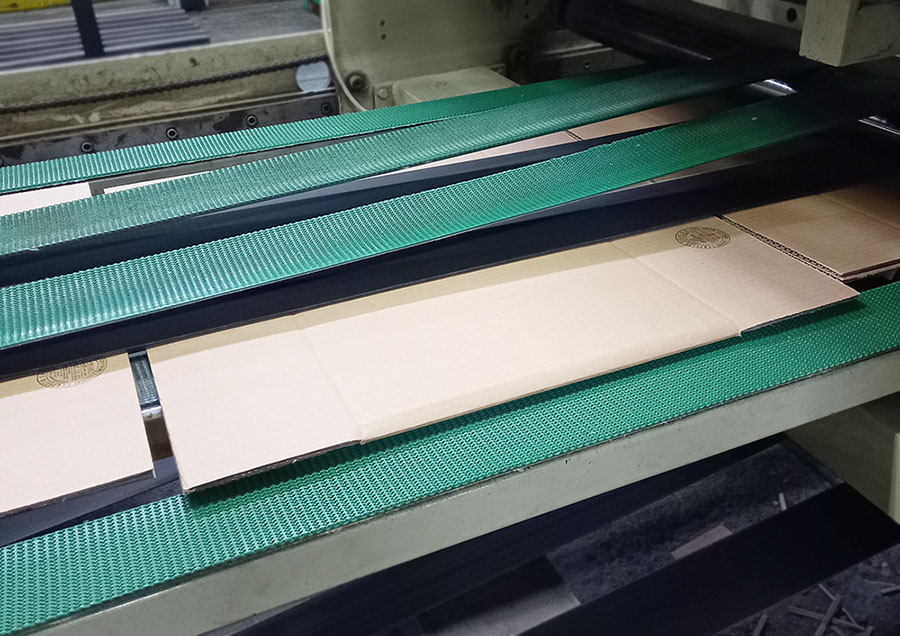

Hipro 13GR for corrugated cardboard processing.

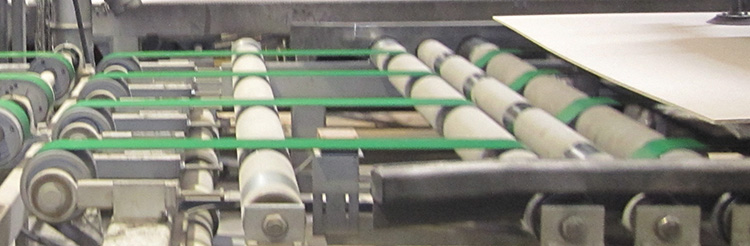

Hipro 18Y1R conveying chipboard.

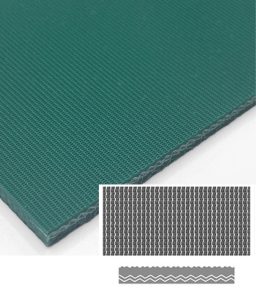

Y1 Pattern

Hipro 12Y1R & Hipro 18Y1R

HPVC Topcover with Pattern Y1.

Total Thickness: 2.2mm & 3.2mm

Min. Pulley diameter: 25mm & 50mm

Bottom low noise fabric with conductive resin.

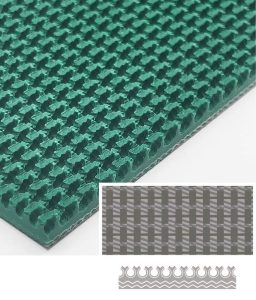

G Pattern

Hipro 13GR

HPVC Topcover with Pattern G.

Total Thickness: 6.50mm

Min. Pulley diameter: 60mm

Bottom fabric with conductive resin.
