esbelt positive drive conveyor belts

Smart Drive is the new proposal from esbelt that replaces modular and homogeneous belts. They are positive drive belts that meet the most demanding needs. Smart Drive is made of Premium TPU with high resistance to animal and vegetable fats, abrasion, and hydrolysis, complying with EU Regulations EC 1935/2004, EU10/2011, and FDA.

piñones

Design flexibility

Smart Drive adapts to conveying needs and can be configured in multiple ways to guarantee its best performance in each application.

Optimal centering of the belt

The toothed profiles, on the bottom cover, enable optimal centering, prevent damage due to misalignment, save costs and maintenance time.
Smart Drive
Smart Drive conveying wet feathers.

Advantages of Smart Drive over modular and homogeneous belts

Advantages over modular belts

  • Easy to clean, reduced risk of contamination. More security.
  • Water savings, reduction in cleaning hours, less waste water treatment.
  • Less noise pollution.
  • More cost-effective solution.

Advantages over homogeneous or monolithic belts

  • Less elongation.
  • No misalignment if there is an accidental cut.
  • High dimensional stability, avoiding undulations and deformations on the surface.
  • Allows for customised design and fabrication of long conveyors.
  • Anti-microbial formulation.

esbelt Positive Drive conveyor belts

Hygienic and safe design that adapts to every conveyor and application. Discover the many possibilities and advantages of Smart Drive.

Base belt

Advantages over modular belts

Advantages over homogeneous or monolithic belts

Our Smart Drive belts comply with FDA and EU regulations to ensure food safety. Its TPU has a bacteriostatic formulation that reduces microbial growth and is anti-hydrolysis, allowing frequent washing sessions, keeping it in perfect condition.

As we are committed to the highest quality standards, our Smart Drives support the implementation of a HACCP system.

GrabadoA2 y canto sellado

Sealed edges

Sealed edges as an additional safety and protection measure, preventing the accumulation of dirt that contributes to microbial proliferation and ply separation.

Accessories

engranajes

Sprockets

PEHD sprockets  transfer the traction exerted by the engine to the Smart Drive belt motion with very high precision and dimensional stability.

Several types of sprockets are available and a suitable one can be chosen depending on the Smart Drive configuration.

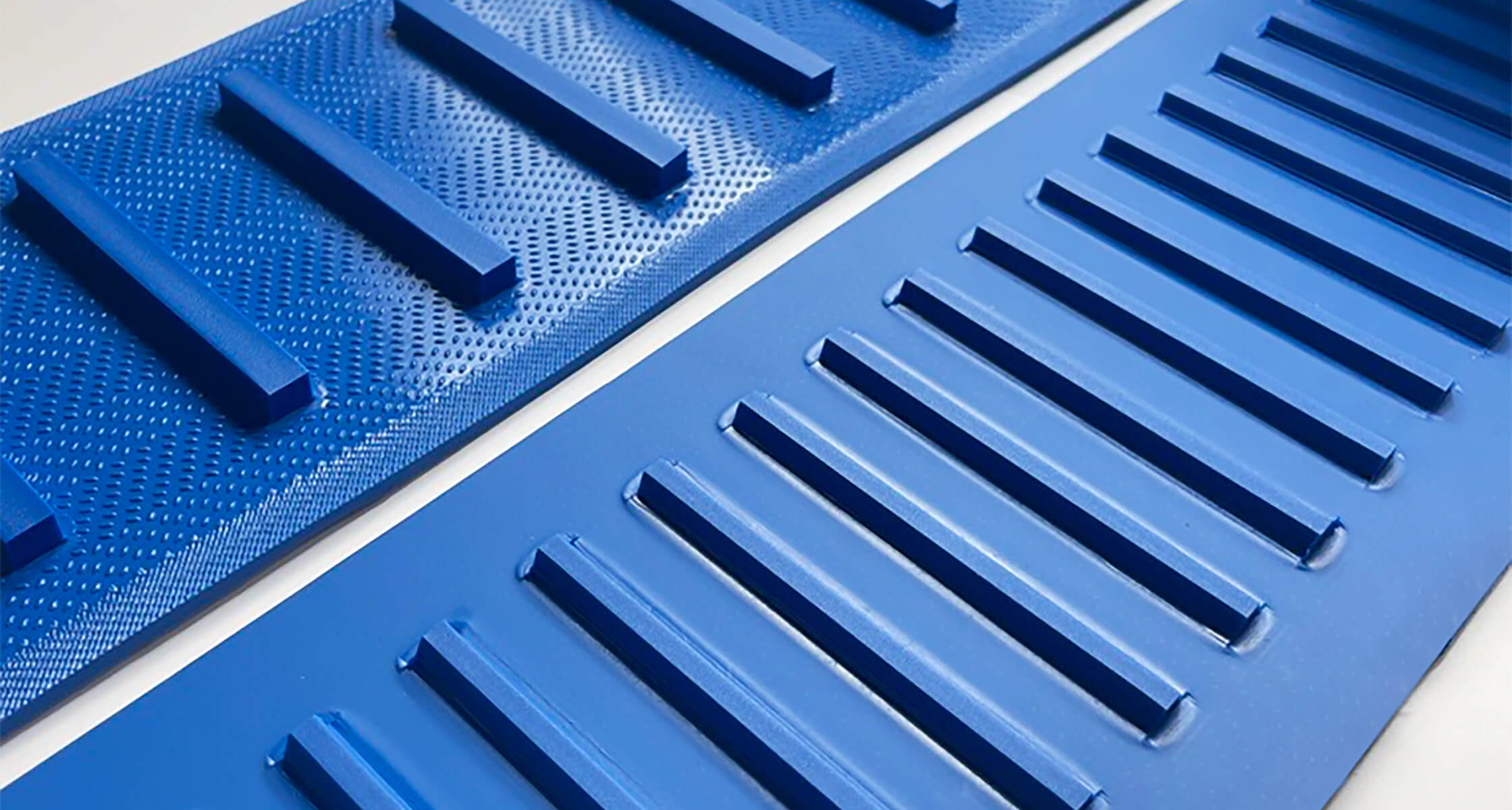

Toothed Profiles

The toothed profiles can be configured in different ways on the bottom cover of Smart Drive to achieve maximum self-centering of the belt. It is possible to define the length and arrangement of the toothed profiles according to each conveyor. They can be welded along the entire width of the belt, only at the center, or arranged in different rows.

  • Pitch 20mm between toothed profiles:
  • Pitch 40mm between toothed profiles:

Cleats

Straight and inclined TPU cleats of various heights are available for the belt´s top cover.

Runer

TPU ”Runer” or sidewalls are also available to be installed on the belt´s top cover.
