Innovation and quality with EP02UYMT-10-BL06, TPU elastic belt

Designed to offer a simple, efficient, and durable solution.  Its non-fabric structure allows the belt to be very light, elastic, and flexible, making it especially suitable for small conveyors without tensioner. Thanks to its characteristics, it is easy to clean and install.  Ply-delamination as well as fraying edges can also be avoided when using this belt.

CHARACTERISTICS:

  • 100% TPU belt of 1.0mm thickness without fabric reinforcement.

BENEFITS:

  • Easy to clean and maintain, no delamination of plies nor contamination from fibers.
  • Helps in the implementation of HACCP.
  • Excellent performance in damp environment.
  • High elasticity, low load on roller axles.
  • Long life span of bearings, less breakdowns.
  • Suitable for flat layout.
  • Belt edges stay flat and do not curl up due to deformation or tension.
  • Belt ends are joint by hot vulcanizing.
  • Flexibility in supplying the belt dimensions.

Technical data.

Material: Premium TPU Blue06

Total thickness: 1.00 mm

Total weight: 1.10 Kg/m2

Minimum diameter: 10 mm

Working load at 8% elongation: 2 N/mm

Innovation and quality with our PU elastic belt

CHARACTERISTICS:

BENEFITS:

  • Easy to clean and maintain, no delamination of layers nor contamination from fibers.
  • Helps in the implementation of HACCP/APPCC.
  • Excellent performance in damp environment.
  • Long life span of bearings, less breakdowns.
  • Long lasting.
  • No edge lifting due to deformation or stress.
  • Flexibility in supplying the required dimension.

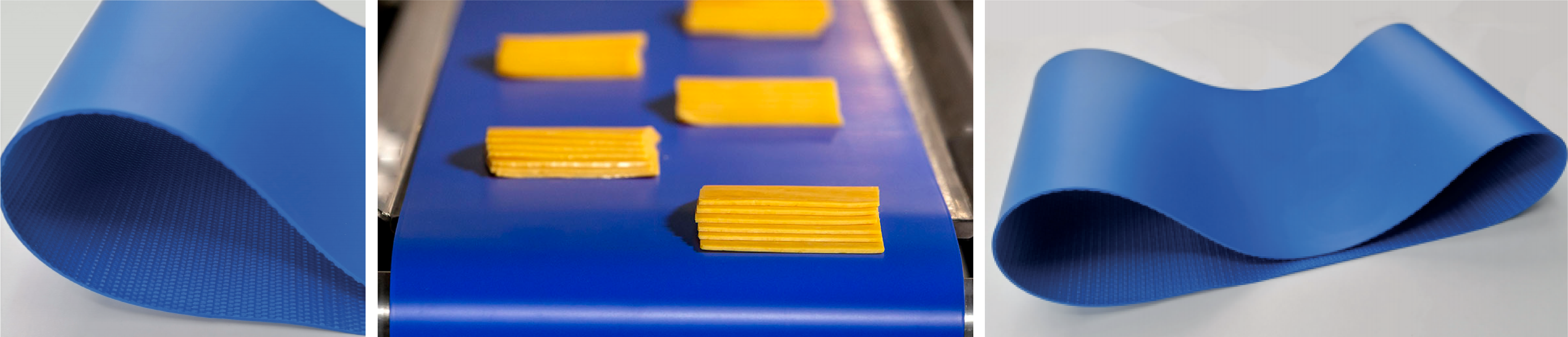

Elastic TPU conveyor belt

Innovation and quality with our EP02UYMT-10-BL06 belt designed without fabrics for greater elasticity. Safe and resistant.

EP02UYMT-10-BL06

Innovation and quality with our TPU elastic conveyor belt.  Designed without fabrics for greater elasticity.

Safe and resistant.

Learn about its full technical characteristics and how to join the belt ends.

Applications:

  • Small conveyors without tensioner
  • Processing of unwrapped food
    • Sorting
    • Cutting, filleting, slicing
    • Portioning
    • Precision weighing
    • Packaging

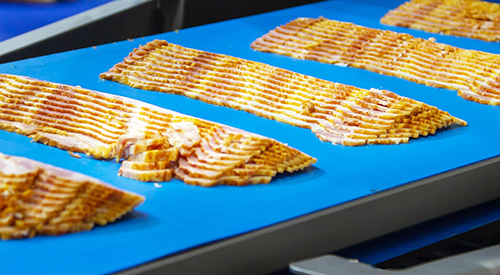

Bacon
banda elástica
Pesadora

We also have TPU elastic thermoweldable extruded belts with the same features as TPU elastic belts.

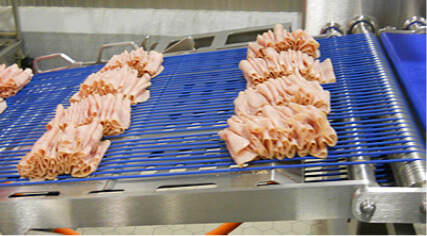

Correas termo transportando jamón

Contact Esbelt for a quote.
